Setting up attachment of earnings (AEO) for an employee

Article ID
Article Name
Setting up attachment of earnings (AEO) for an employee
Created Date
23rd September 2020
IRIS GP Payroll

How do I set up AEOs for employees?


In the employee details, click on “Pay Details

GP Payroll Employee details screen

From here click on “Attachment Orders

GP Payroll Employee pay details window

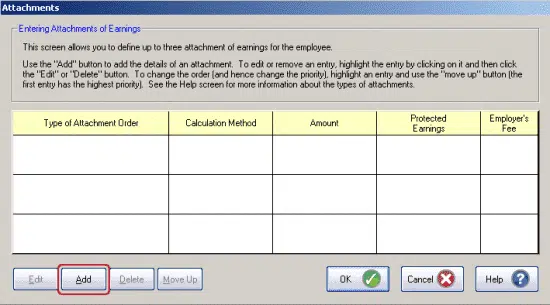

Click the “Add” button:

GP Payroll Attachment of earning (AEO) window

From the drop-down menu select the type of attachment you want to use and fill in the required details:

Configuring Attachment in GP Payroll

Click “OK” and the attachment is added to the list. The next time you calculate payroll the system will process the attachment as per your instructions here.

Populated attachment window GP Payroll

Please Note: Certain options in the “Type of Order” will not allow you to set a deduction amount. For example council tax attachment:

With these types of attachment, the deduction value is selected from a % table issued by HMRC depending on the employee’s net pay (i.e. after tax and NI deductions). You cannot control the amount deducted, it is selected from the appropriate tier based on the employee pay.

Attachment types that use % tables (2019/2020 tax year)

Community Charge (CCAEO)

Community Charge Rates CCAEO rates 2015 2016

Council Tax (CTAEO)

Council Tax Attachment Rates 2015 2016

Earnings Arrestment (EA – Scotland)

Direct Earnings Attachment (DEA)

Please Note there are 2 types of DEA, you will be told if you should use the % table type or fixed value type in the instruction to make deductions.

Attachments with a total outstanding balance to pay

Some attachments specify a total amount the employee has to pay back. For these attachments make sure you tick the option “Tick if you need to enter a total amount owing on the attachment“.

 Once ticked, the fields for “Original Amount Owed” & “Remaining Amount Owed” will be activated and you can complete the values required.

Each time you process payroll the value in “Remaining Amount Owed” will reduce and the attachment will automatically stop once this reaches zero. The software will adjust any final payments automatically so the employee doesn’t overpay the attachment.
